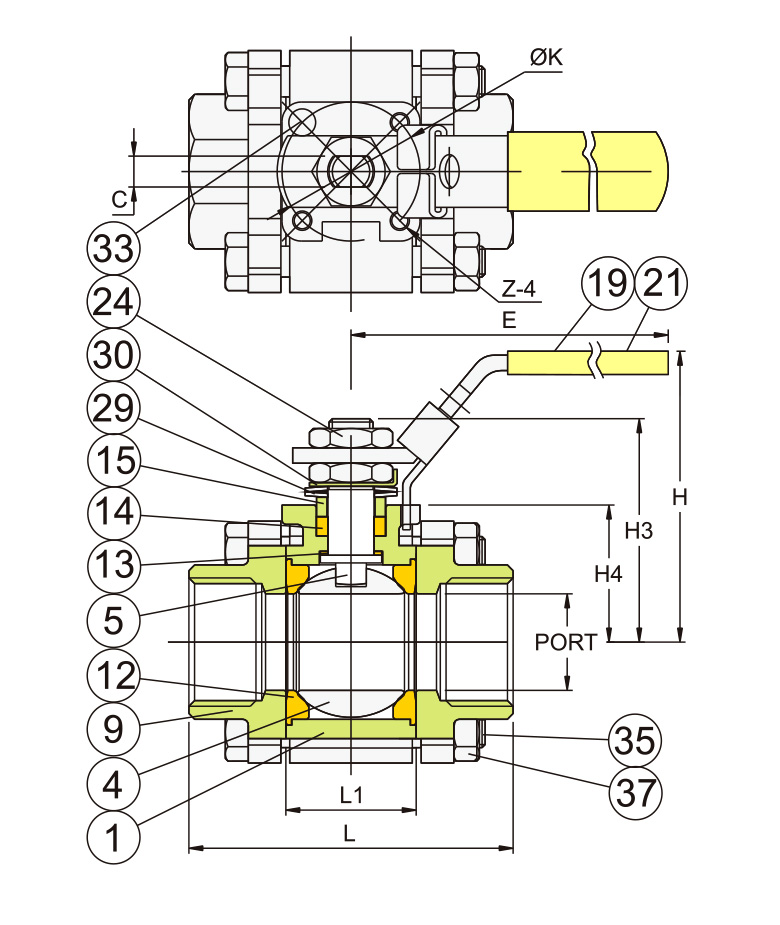

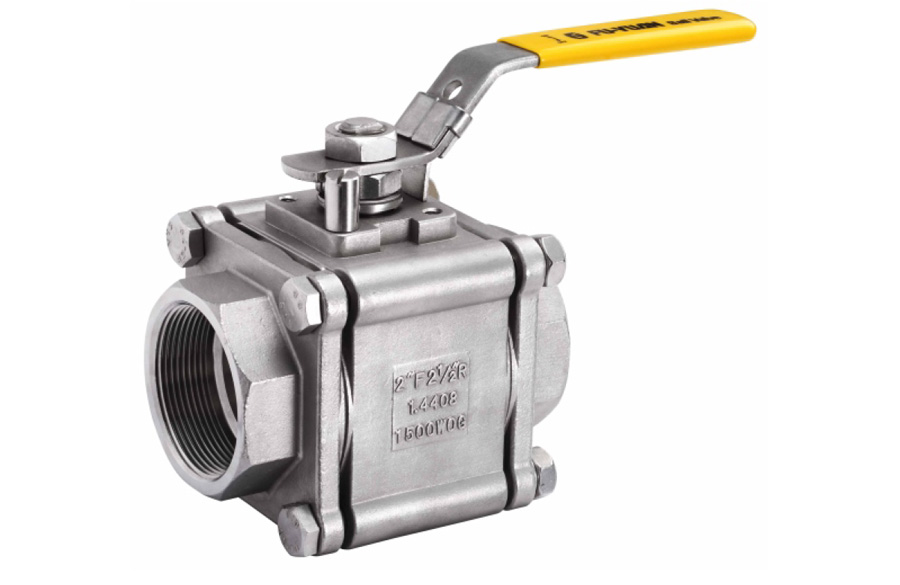

三片式ISO5211低平台球阀
2000WOG/1500WOG

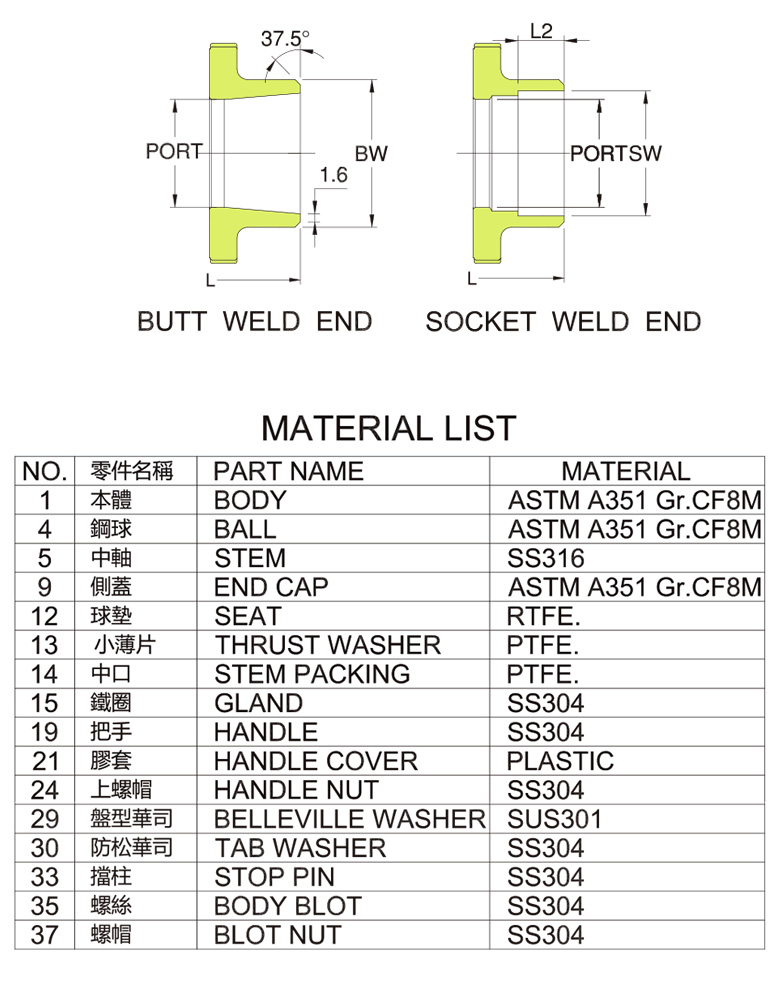

● 連接方式END CONNECTIONS:牙口/套焊/對焊
THREADED END.SOCKET WELD END.BUTT WELD END
● 带ISO5 211平臺座 ISO 5211 MOUNTING FLANGE
● 防爆中軸BLOW-OUT PROOF STEM
● 工作壓力：WORKING PRESSURE(CWP):
V-155B DN8~DN25 2000psi PN140 bar
V-155B DN32~DN50 1500 psi PN100 bar
V-155R DN8~DN32 2000psi PN140 bar
V-155R DN40~DN65 1500psi PN100 bar
● 適用温度範圍 TEMPERATURE RANGE :-20 to 180℃
● 掛锁装置 LOCKING DEVICE
● 管螺紋参照 PIPE THREAD IN ACCORDANCE
ASME B1.20.1(NPT)
DIN 259/DIN 2999
ISO 228/ISO 7-1
BS 21（PT）/BS EN 10226（R）
